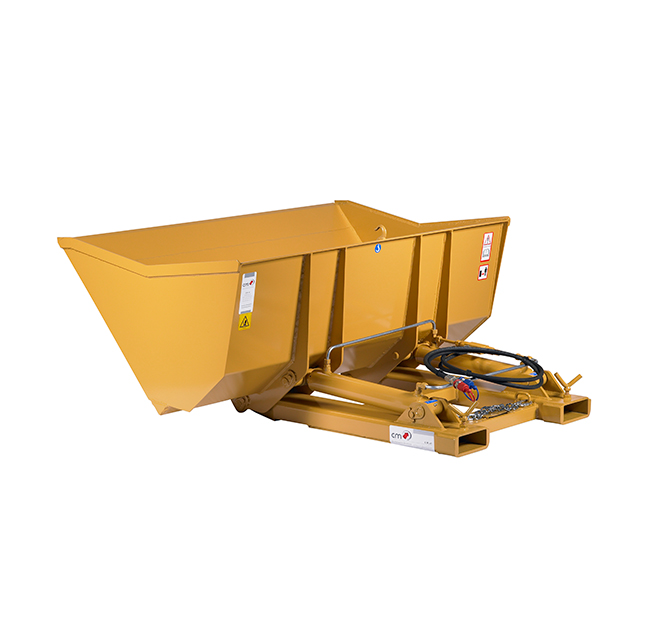

Hydraulic bucket CMBL/I.M
Hydraulic fork mounted increased bucket applicable to all forklift trucks’s forks
- Capacity from 580 to 780 liters
- Spoonbucket width from 1150 mm to 1550 mm
- Available with 1 or 2 cylinders
Application fields
Material handling of loose products, cereals, olives, woodchips, etc. Available on demand with spoonbucket in stainless steel version.Hydraulic bucket CMBL/I.M complete with
- Quick hooking/unhooking
- Connection hoses

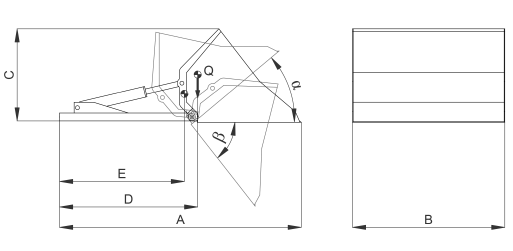

| Model | 580 | 680 | 780 | ||
|---|---|---|---|---|---|
| A | Length | mm | 2020 | 2020 | 2020 |
| B | Width | mm | 1150 | 1350 | 1550 |
| C | Height | mm | 820 | 820 | 820 |
| D | Load centre | mm | 1150 | 1150 | 1150 |
| E | Barycentre without load | mm | 1090 | 1090 | 1090 |
| α | Articulation angle | ° | 40 | 40 | 40 |
| ß | Unloading angle | ° | 52 | 52 | 52 |
| – | Capacity | lt | 580 | 680 | 780 |
| Q | Maximum load | kg | 490 | 580 | 660 |
| – | Max. operating pressure | bar | 160 | 160 | 160 |
| – | Weight | kg | 292 | 350 | 362 |
| – | Required hydraulic fucntions | n. | 1 | ||
| – | Rotation cylinders | n. | 1 | 1 | 2 |
