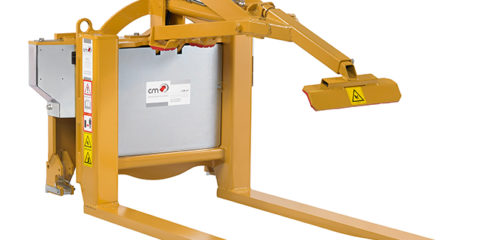

Hydraulic tipper CM 165 ECO
Hydraulic tipper for bins and containers applicable to all forklift trucks
- Overturning capacity 700 kg
- Load capacity 1500 kg
- Available in FR version with pliable forks
Hydraulic tipper CM 165 ECO complete with
- Third side fork
- Quick hooking/unhooking
- Connection hoses
Ideal for overturn bins with foodstuffs, fruit and vegetables.
Optional Accessories
| Model | 165 S15 | 165 SA15 | ||
|---|---|---|---|---|
| A | Length | mm | 1350 | 1350 |
| B | Width | mm | 910 | 910 |
| C | Height | mm | 840 | 840 |
| D | External fork width | mm | 680 | 680 |
| H | Barycentre without load | mm | 220 | 220 |
| G | Barycentre of the load | mm | 500 | 500 |
| I | Thickness | mm | 250 | 250 |
| α | Overturning angle | ° | 165 | 165 |
| Q | Capacity | kg | 1500 | 1500 |
| – | Overturning capacity | kg | 700 | 700 |
| – | Max. operating pressure | bar | 160 | 160 |
| – | Weight | kg | 213 | 213 |
| – | Required hydraulic functions | n. | 1 | 1 |
| – | Fixed forks | 100×35 L=1100 | 100×35 L=1080 | |
