• Hydraulic forklift CM16QHAL

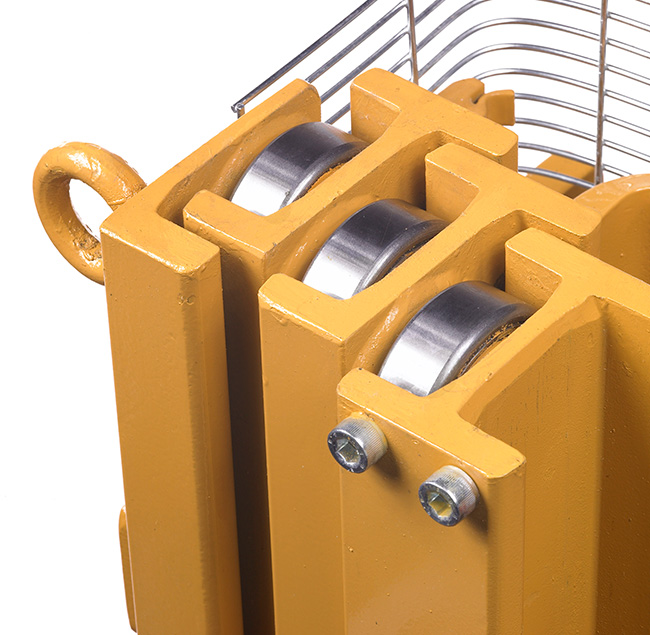

  • Hot rolled steel profiles

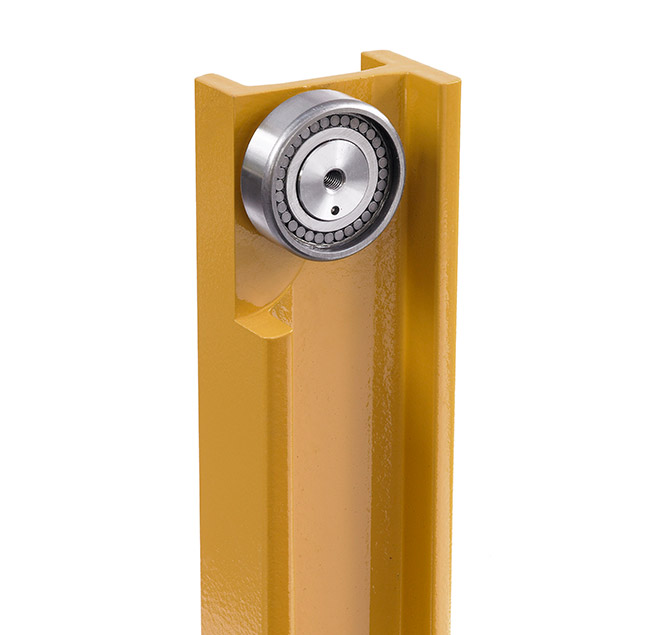

  • Straight roller radial bearings

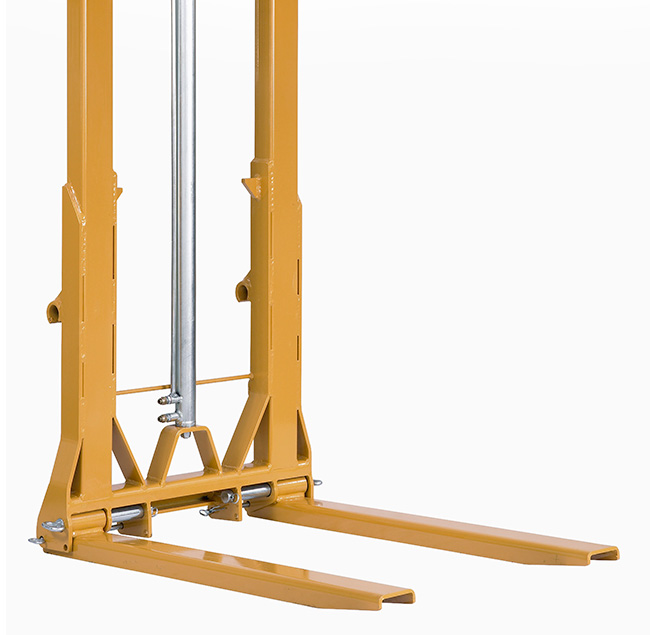

  • Adjustable and pliable forks

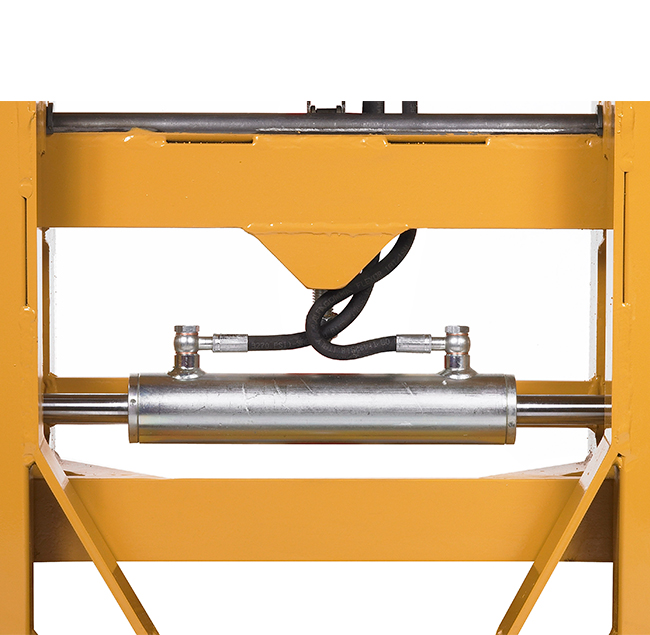

  • Side shift

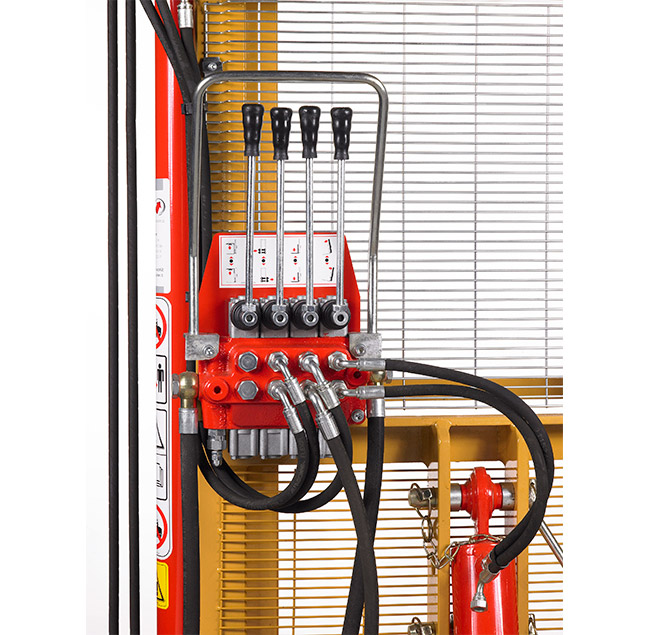

  • Distributor with 4 levers
  • Fleyer type lifting chains

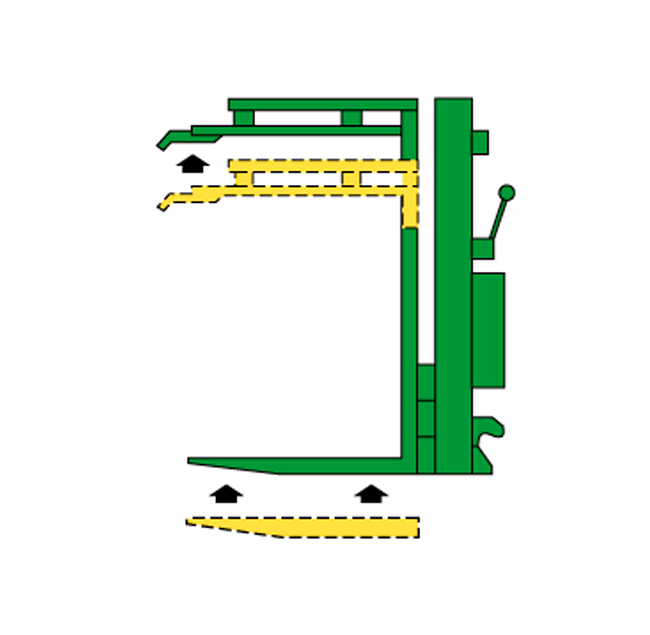

  • Free lifting

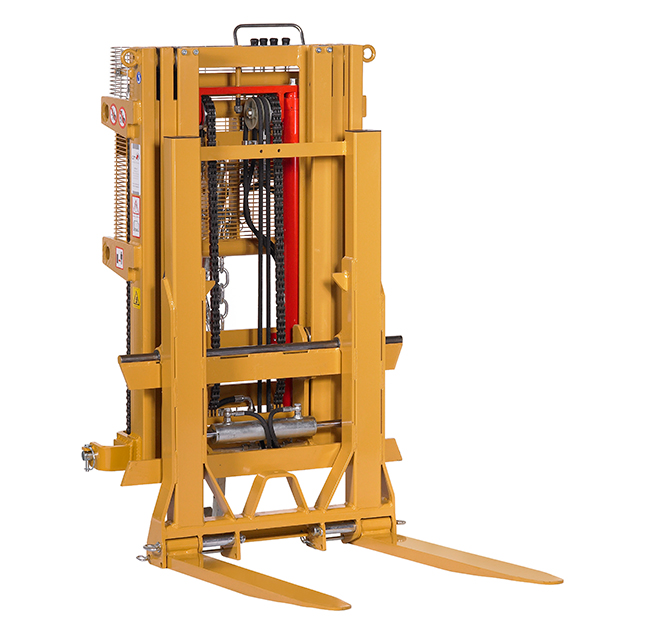

Hydraulic forklift CM 16QHAL

Hydraulic forklift suitable to medium power tractors

  • Load capacity 1600 kg
  • Lifting height from 2500 to 4000 mm
  • Minimum overall dimensions with free lifting

Application fields

Orchards, vineyard, horticulture, greenhouse

Categories: ,

CM 16QHAL hydraulic forklift is complete of

  • Cylindrical roller bearings
  • Four “Fleyer” lifting chains
  • “U” and “H” shaped hot rolled steel profiles
  • Two lateral double extension lifting cylinders
  • Cat.2 three point linkage
  • Free lifting 200 mm
  • Distributor with 4 levers
  • Side shift sliding on bushes
  • Adjustable and pliable forks
  • Tilting cylinder with adjustable junction
  • Connecting hoses to the tractor

Optional Accessories
Quadruplex
Models C
mm		 H
mm		 P
Kg		 B
mm		 A
mm		 L
mm		 E
mm		 D
mm		 Q
Kg
 16 QHAL 2500 2500 1280 470 950 1800 700 490+720 500 1600
 16 QHAL 3300 3300 1480 520 1100 1950 700 490+720 500 1600
 16 QHAL 4000 4000 1650 580 1350 2450 700 490+720 500 1600


C  Lifting height
H Overall dimensions
P Weight
B Minimum opening
A Maximum opening
L Forklift width
E Forks width
D  Load centre
Q  Load capacity
