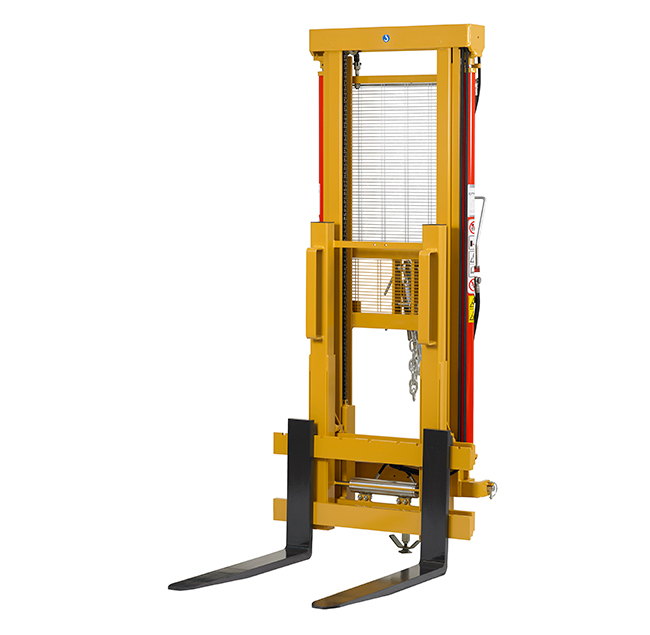

Hydraulic forklift CM 20DBCH
Hydraulic forklift suitable to high power tractors
- Load capacity 2000 kg
- Lifting height from 3200 to 4000 mm

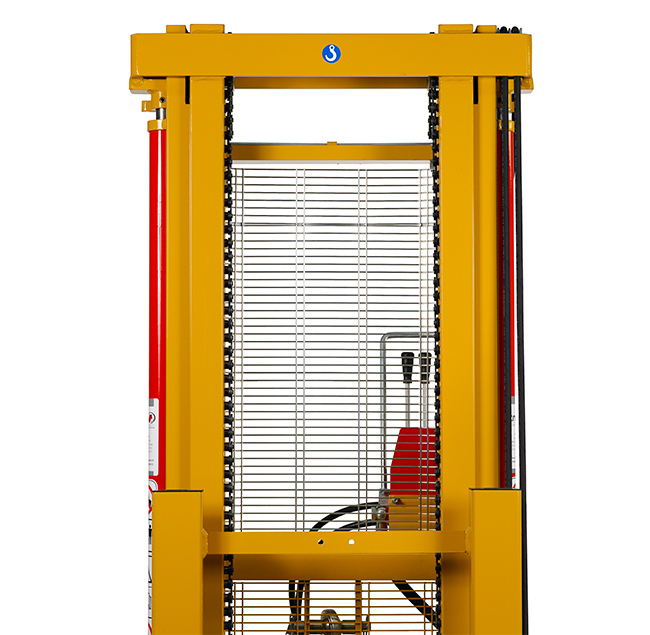

- Sturdy and balanced, with great visibility for the operator
Application fields
HorticultureCM 20 DBCH hydraulic forklift is complete of

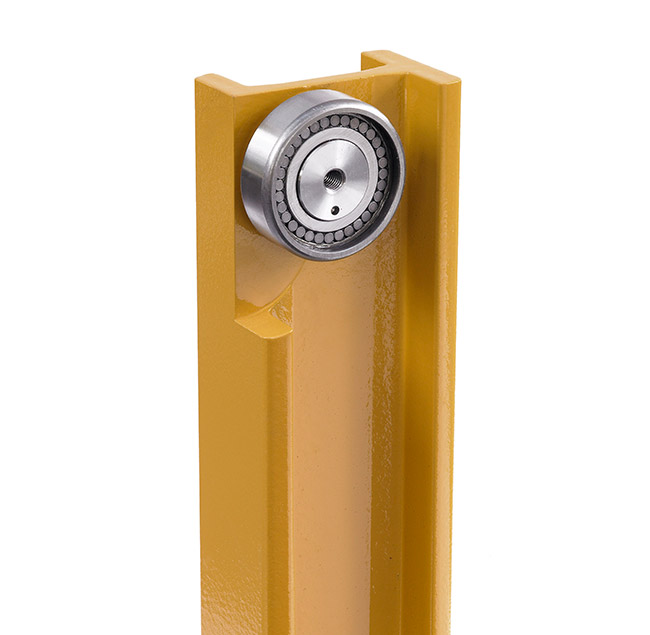

- Cylindrical roller bearings
- Two “Fleyer” lifting chains

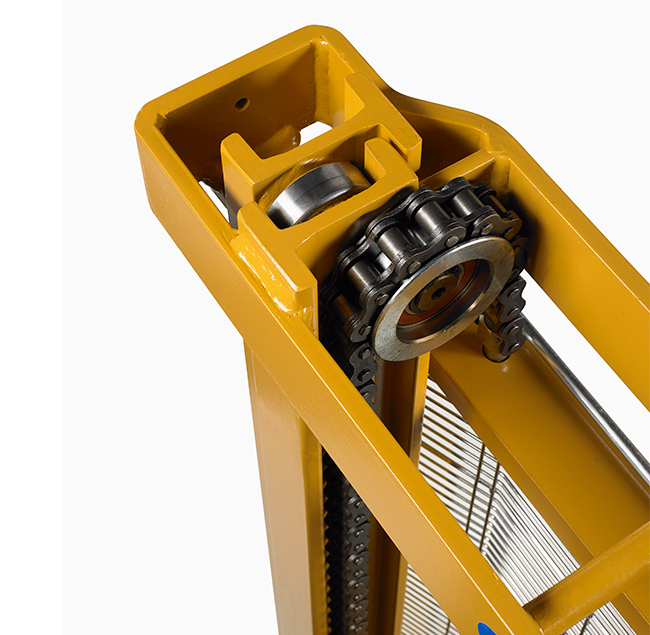

- “H” shaped hot rolled steel profiles
- Two lateral double effect lifting cylinders
- Cat.2 three point linkage

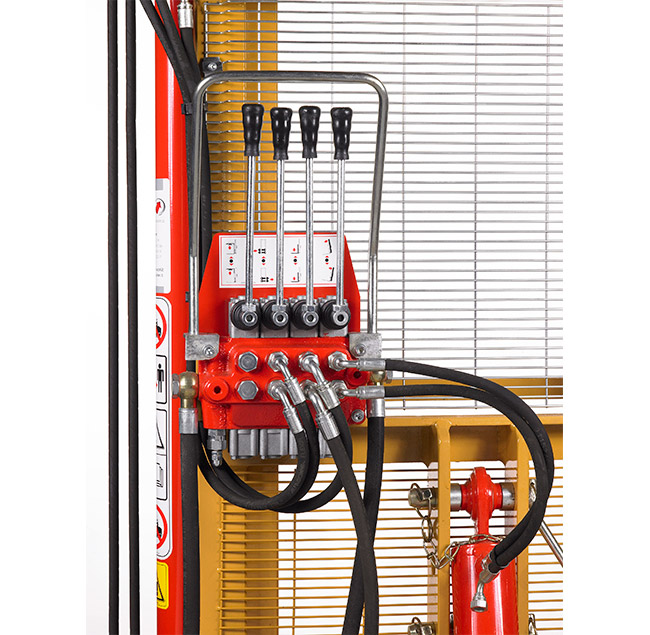

- Distributor with 4 levers

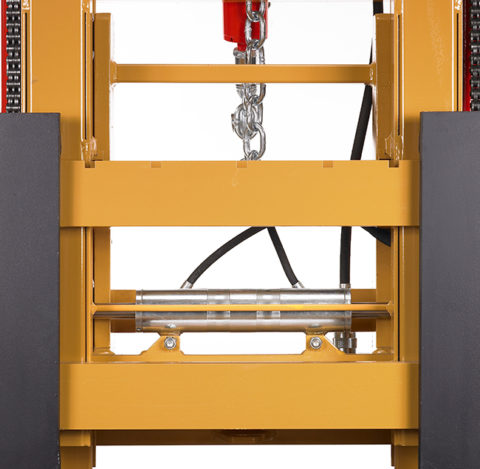

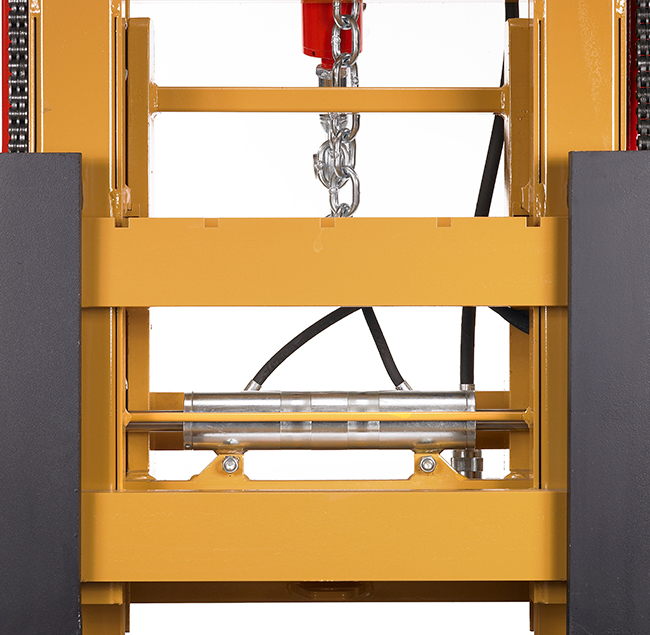

- FEM side shift sliding on bronze pads

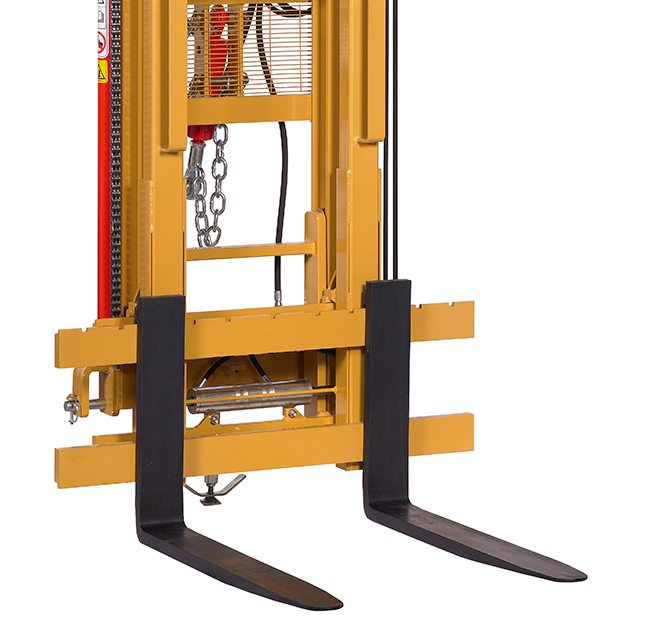

- FEM forks
- Tilting cylinder with adjustable junction
- Connecting hoses to the tractor
Optional Accessories
| Duplex | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Models | C mm |
H mm |
P Kg |
B mm |
A mm |
L mm |
E mm |
D mm |
Q Kg |
|
| 20 DBCH 3200 | 3200 | 2400 | 690 | 1350 | 2450 | 800 | 240÷1000 | 500 | 2000 | |
| 20 DBCH 3600 | 3600 | 2600 | 730 | 1350 | 2450 | 800 | 240÷1000 | 500 | 2000 | |
| 20 DBCH 4000 | 4000 | 2800 | 770 | 1350 | 2450 | 800 | 240÷1000 | 500 | 2000 | |
| C | Lifting height |
| H | Overall dimensions |
| P | Weight |
| B | Minimum opening |
| A | Maximum opening |
| L | Forklift width |
| E | Forks width |
| D | Load centre |
| Q | Load capacity |
