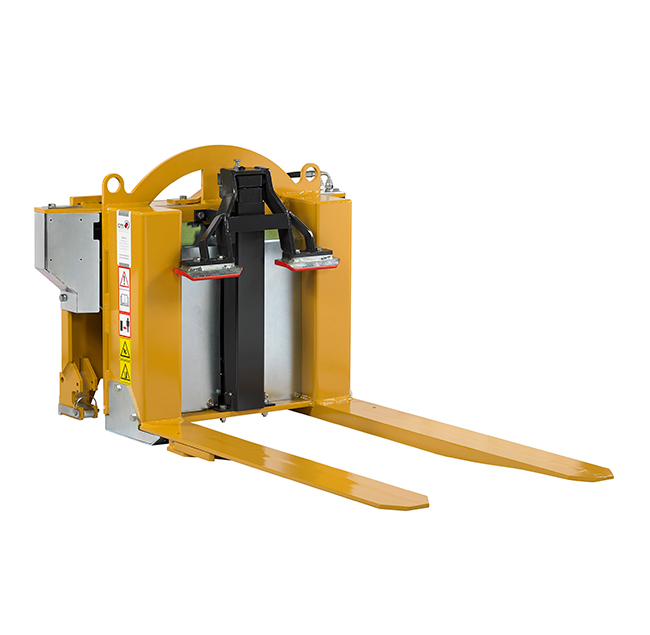

Hydraulic tipper CM 165 FLAP
Hydraulic tipper for bins and containers applicable to all forklift trucks
- Overturning capacity 750 kg
- Load capacity 1500 kg
Innovative patented locking system
Available in stainless steel version mod. CM 165 FLAP INOX, suggested for food, fish and slaughtering sector.Hydraulic tipper CM 165 FLAP complete with
- Sequence valve to block and overturn with a single control
- Quick hooking/unhooking
- Connection hoses
Ideal for overturn bins with foodstuffs, fruit and vegetables.
Optional Accessories

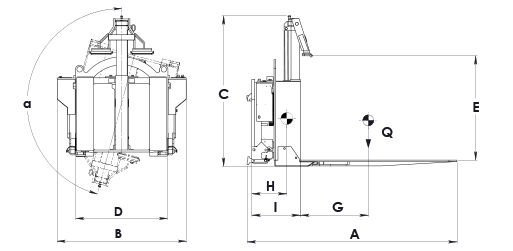

| Model | 165 FLAP | ||
|---|---|---|---|
| A | Length | mm | 1460 |
| B | Width | mm | 950 |
| C | Height | mm | 1030÷1045 |
| D | External fork width | mm | 670 |
| E | Height of containers | mm | 420÷1100 |
| H | Barycentre without load | mm | 240 |
| G | Barycentre of the load | mm | 500 |
| I | Thickness | mm | 335 |
| α | Overturning angle | ° | 165 |
| Q | Capacity | kg | 1500 |
| – | Overturning capacity | kg | 750 |
| – | Max. operating pressure | bar | 160 |
| – | Weight | kg | 282 |
| – | Required hydraulic functions | n. | 1 |
| – | Fixed forks | 130×40 L=1080 | |
