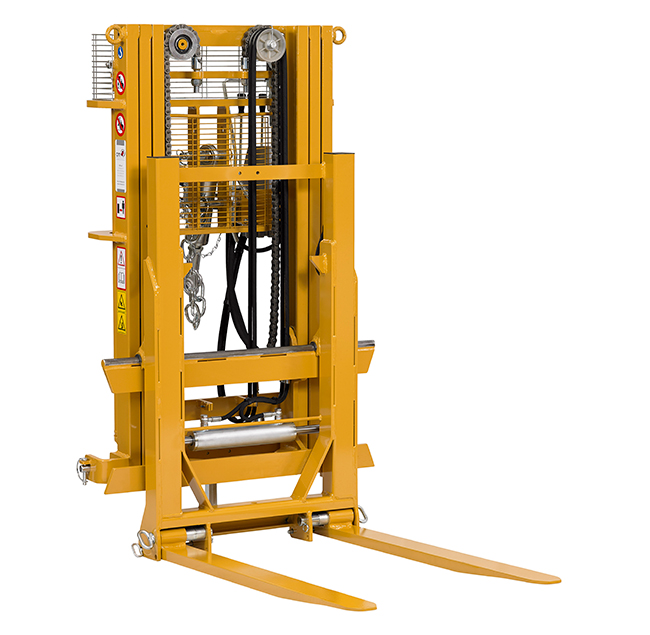

Hydraulic forklift CM 10TBCL
Hydraulic forklift suitable to small and medium power tractors
- Load capacity 1000 kg
- Lifting height from 2500 to 3500 mm
- Light

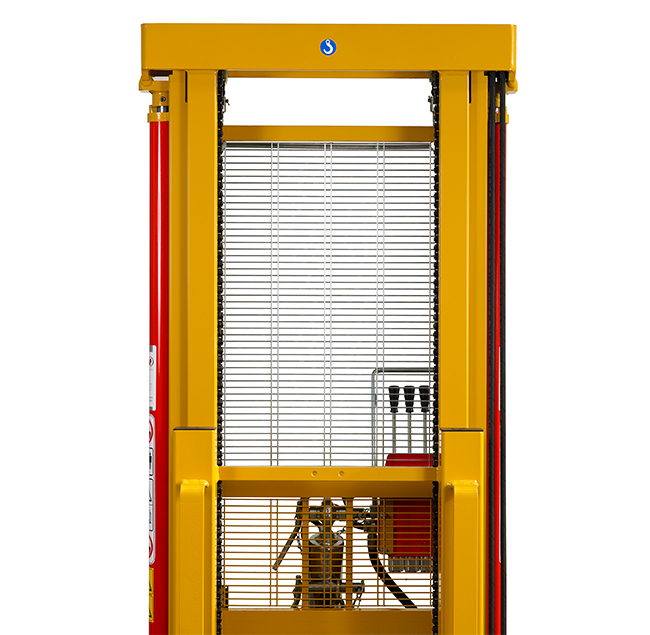

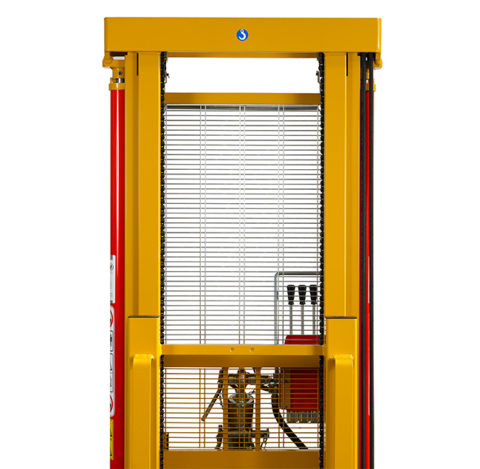

- Provide the operator with great visibility
Application fields
Orchards, vineyard, horticulture, greenhouseThe hydraulic forklift CM 10 TBCL is complete of:

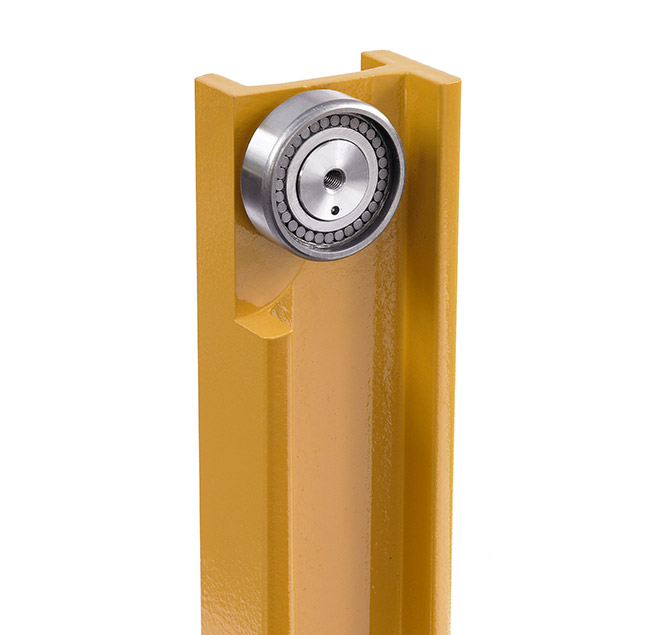

- Cylindrical roller bearings

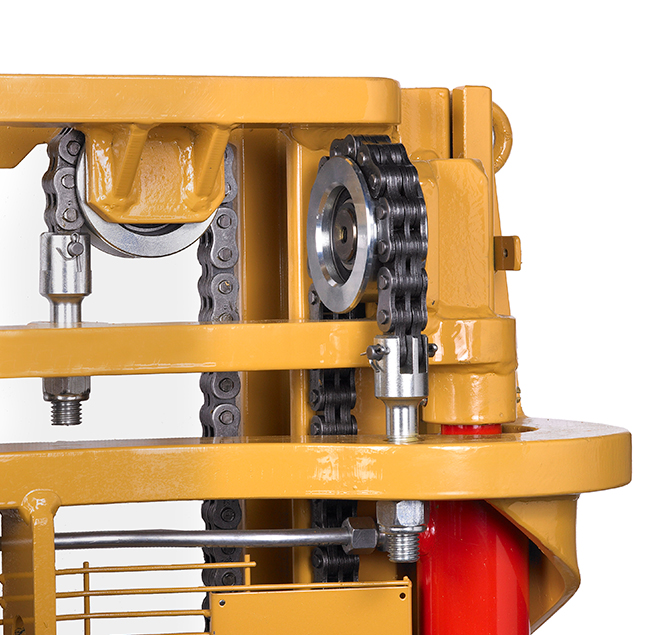

- Four “Fleyer” lifting chains

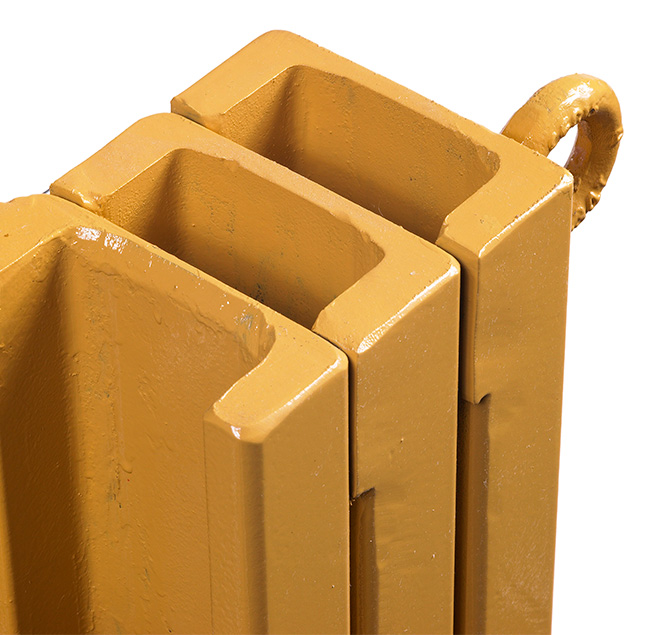

- “U” shaped hot rolled steel profiles
- Two lateral double effect lifting cylinders
- Cat.1 three point linkage

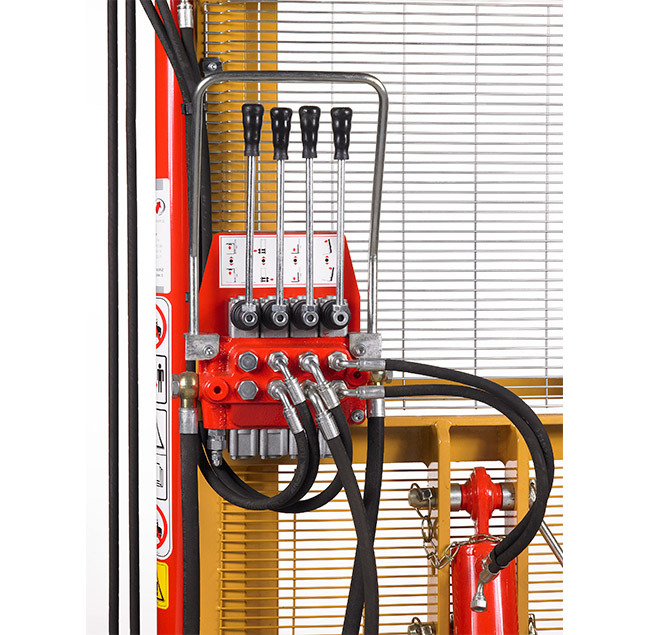

- Distributor with 4 levers

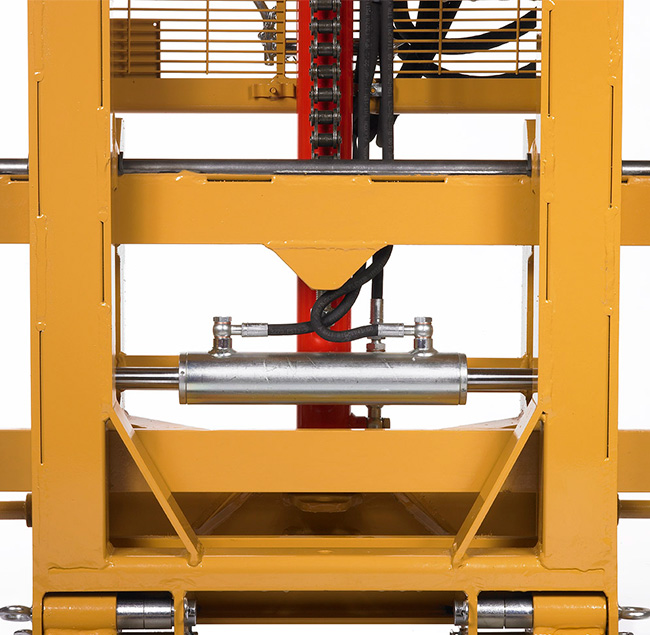

- Side shift sliding on self lubricating bushes

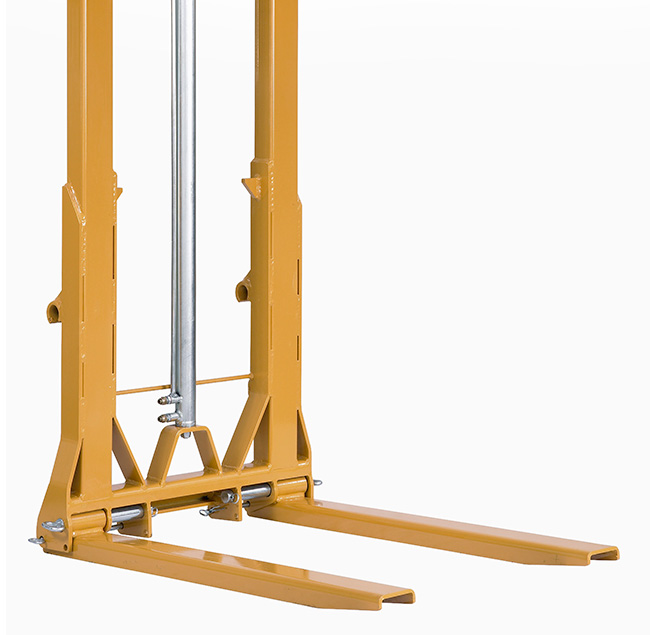

- Adjustable and pliable forks
- Tilting cylinder with adjustable junction
- Connecting hoses to the tractor
Optional accessories
| Triplex | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Models | C mm |
H mm |
P Kg |
B mm |
A mm |
L mm |
E mm |
D mm |
Q Kg |
|
| 10 TBCL 2500 | 2500 | 1480 | 330 | 950 | 1800 | 650 | 500÷620 | 400 | 1000 | |
| 10 TBCL 3000 | 3000 | 1650 | 360 | 950 | 1800 | 650 | 500÷620 | 400 | 1000 | |
| 10 TBCL 3500 | 3500 | 1820 | 390 | 950 | 1800 | 650 | 500÷620 | 400 | 1000 | |
| C | Lifting Height |
| H | Overall dimensions |
| P | Weight |
| B | Minimum opening |
| A | Maximum opening |
| L | Forlift width |
| E | Forks width |
| D | Load centre |
| Q | Load capacity |
