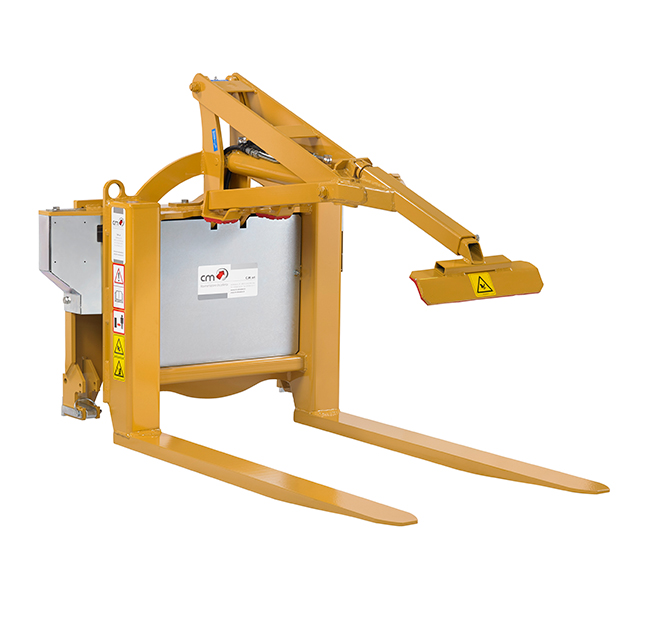

Hydraulic tipper CM 165 S 15 – SA 15
Hydraulic tipper for bins and containers applicable to all forklift trucks
- Overturning capacity 700 kg
- Load capacity 1500 kg
Hydraulic tipper CM 165 S15 – SA 15 complete with
- Upper arm for bins locking
- Sequence valve to block and overturn with a single control
- Quick hooking/unhooking
- Connection hoses
Ideal for overturn bins with foodstuffs, fruit and vegetables.
Optional Accessories

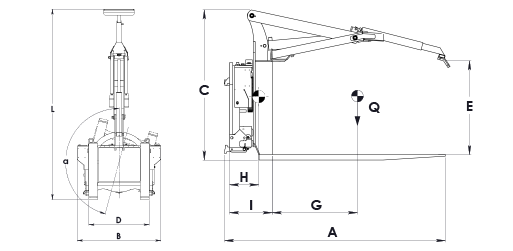

| Model | 165 S15 | 165 SA15 | ||
|---|---|---|---|---|
| A | Length | mm | 1430 | 1430 |
| B | Width | mm | 950 | 950 |
| C | Height | mm | 970 | 1190 |
| D | External fork width | mm | 680 | 680 |
| E | Height of containers | mm | 430÷680 | 680÷900 |
| H | Barycentre without load | mm | 200 | 200 |
| G | Barycentre of the load | mm | 500 | 500 |
| I | Thickness | mm | 275 | 275 |
| α | Overturning angle | ° | 165 | 165 |
| Q | Capacity | kg | 1500 | 1500 |
| – | Overturning capacity | kg | 700 | 700 |
| – | Max. operating pressure | bar | 160 | 160 |
| – | Weight | kg | 271 | 279 |
| – | Required hydraulic functions | n. | 1 | 1 |
| – | Fixed forks | 100×35 L=1100 | 100×35 L=1100 | |
