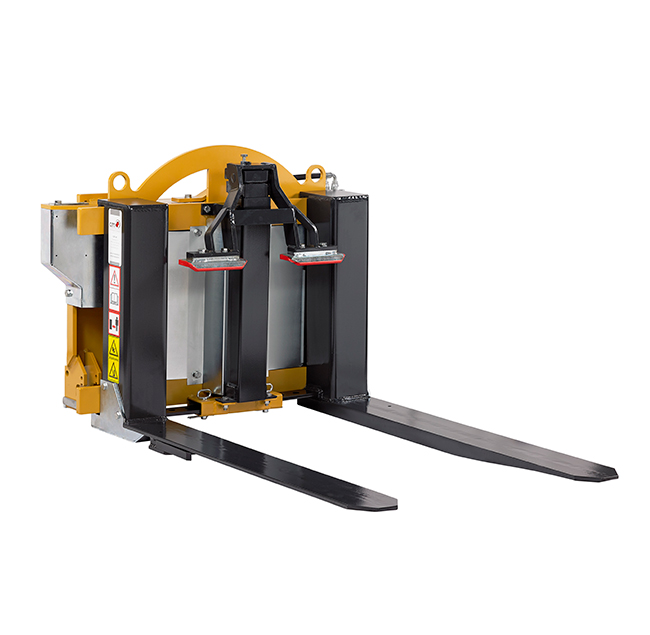

Hydraulic tipper CM 165 FLAP PFR
Hydraulic tipper for bins and containers applicable to all forklift trucks
- Overturning capacity 1200 kg
- Load capacity 1500 kg
Innovative patented locking system
The innovative patented locking system values the news of this tipper, complete with adjustable forks for bins of several sizes.Hydraulic tipper CM 165 FLAP PFR complete with
- Adjustable forks for bins of several sizes
- Sequence valve to block and overturn with a single control
- Quick hooking/unhooking
- Connection hoses
Ideal for overturn bins with foodstuffs, fruit and vegetables.
Optional Accessories

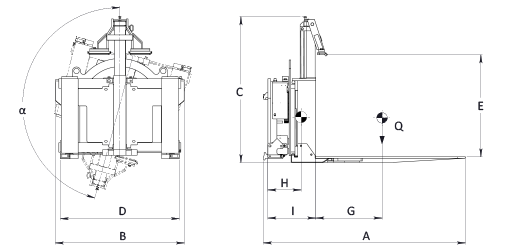

| Model | 165 FLAP PFR | ||
|---|---|---|---|
| A | Length | mm | 1450 |
| B | Width | mm | 950 |
| C | Height | mm | 1030÷1445 |
| D | Fork base | mm | 580÷880 |
| E | Height of containers | mm | 400÷1100 |
| H | Barycentre without load | mm | 240 |
| G | Load centre | mm | 500 |
| I | Thickness | mm | 345 |
| α | Overturning angle | ° | 165 |
| Q | Load capacity | Kg | 1500 |
| – | Overturning capacity | Kg | 1200 |
| – | Operating pressure | Bar | 140 |
| – | Weight | Kg | 327 |
| – | Required hydraulic lines | n. | 2 (1 leva d.e.) |
| – | Adjustable forks | 130×40 L=1080 | |
