Hydraulic forklift CM 16TC
Hydraulic forklift suitable to medium power tractors
- Load capacity 1600 kg
- Lifting height from 2500 to 3600 mm
- Light and with minimum overall dimensions
Application fields
Orchards, vineyard, horticulture, greenhouseCM 16 TC hydraulic forklift is complete of
- Cylindrical roller bearings
- “Fleyer” lifting chain
- “U” shaped hot rolled steel profiles
- Double extension lifting cylinder
- Cat.2 three point linkage

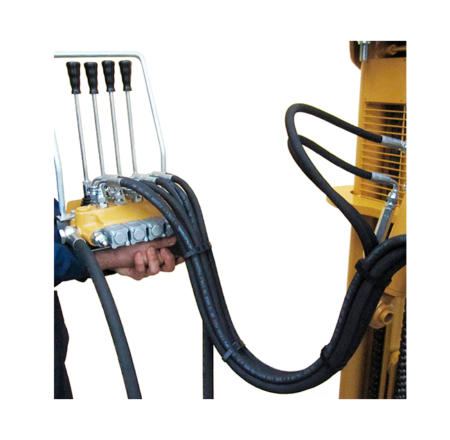

- Distributor with 4 levers
- Side shift sliding on bushes
- Adjustable and pliable forks
- Tilting cylinder with adjustable junction
- Connecting hoses to the tractor

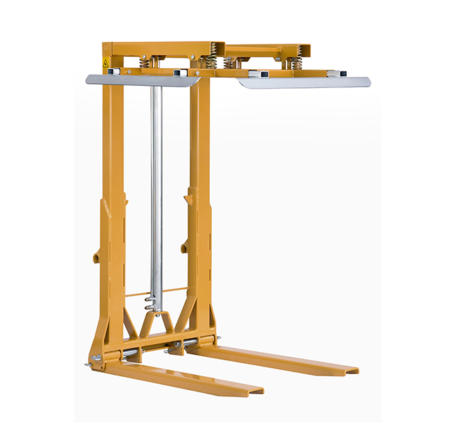

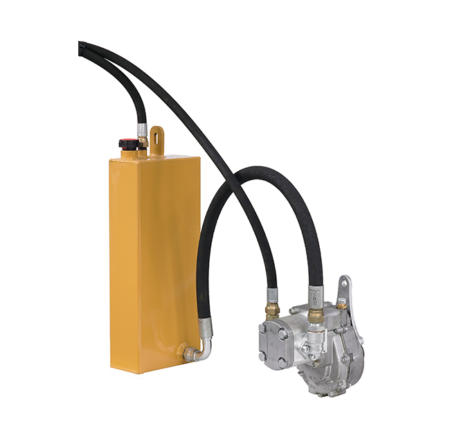

Optional Accessories
| Triplex | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Models | C mm |
H mm |
P Kg |
B mm |
A mm |
L mm |
E mm |
D mm |
Q Kg |
|
| 16 TC 2500 | 2500 | 1480 | 350 | 1100 | 1950 | 700 | 490÷720 | 500 | 1600 | |
| 16 TC 3000 | 3000 | 1730 | 395 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| 16 TC 3200 | 3200 | 1790 | 410 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| 16 TC 3600 | 3600 | 1930 | 450 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| C | Lifting height |
| H | Overall dimensions |
| P | Weight |
| B | Minimum opening |
| A | Maximum opening |
| L | Forklift width |
| E | Forks width |
| D | Load centre |
| Q | Load capacity |
