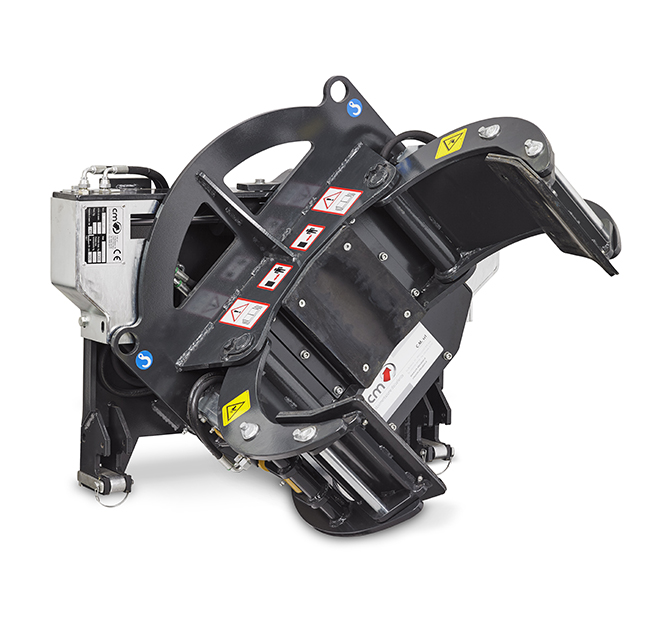

HYDRAULIC DRUM ROTATOR CM 165 GF
Applicable to all forklift truck to overturn and handle drums of different diameter and type.
- Overturning capacity 300 kg
- Drum diameter from 380 to 600 mm
Hydraulic drum rotator CM 165 GF complete with:
- Sequence valve to block and overturn with a single control
- Quick hooking/unhooking
- Connection hoses
Suitable in the chemical, food or heavy industry to overturn and move drums of different diameters and types.
| Model | CM 165 GF | ||
| A | Length | mm | 730 |
| B | Width | mm | 950 |
| C | Height | mm | 750 |
| D | Drum diameter | mm | 380¸600 |
| E | Maximum opening | mm | 740 |
| H | Barycentre without load | mm | 160 |
| G | Barycentre of the load | mm | 600 |
| α | Overturning angle | ° | 165 |
| – | Maximum capacity (moving) | kg | 300 |
| – | Operating capacity (overturning) | kg | 300 |
| bar | 160 | ||
| – | Weight | kg | 240 |
| – | Required hydraulic functions | n. | 1 |
