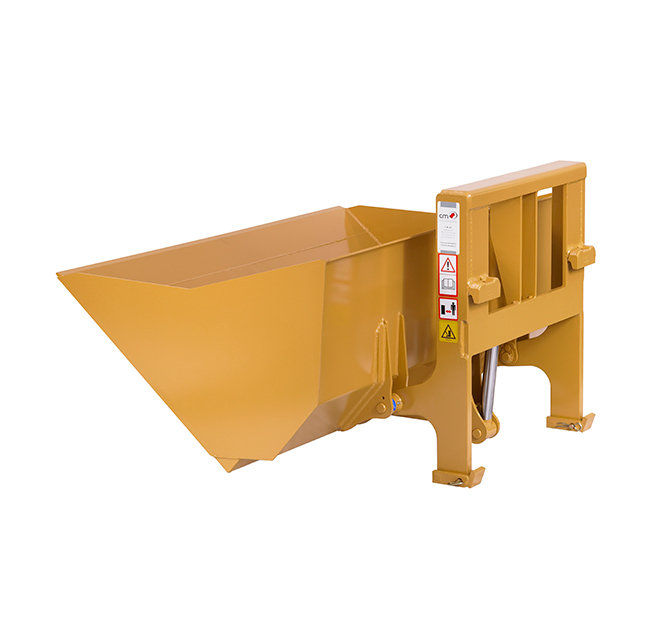

Hydraulic bucket CMBL

Hydraulic bucket CMBL

Hydraulic bucket applicable to all forklift trucks

  • Capacity from 400 to 700 liters
  • Spoonbucket width from 1150 mm to 1950 mm
  • Available with 1 or 2 cylinders

Application fields

Material handling of loose products, sand, inerts, gravel, snow, etc.
Available on demand with spoonbucket in stainless steel version

Hydraulic bucket CMBL complete with

  • Quick hooking/unhooking
  • Connection hoses

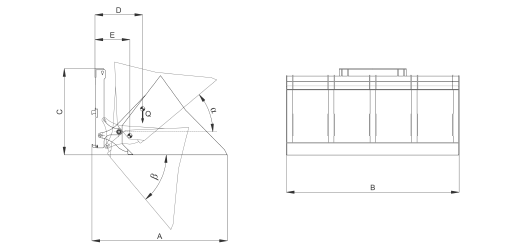

Model 400 450 550 600 700
A Length mm 1200 1200 1200 1200 1200
B Width mm 1150 1350 1550 1750 1950
C Height mm 960 960 960 960 960
D Load centre mm 600 600 600 600 600
E Barycentre without load mm 350 350 350 350 350
α Articulation angle ° 40 40 40 40 40
ß Unloading angle ° 50 50 50 50 50
Capacity Lt 400 450 550 600 700
Q Maximum load Kg 400 450 550 600 700
Operating pressure Bar 140 140 140 140 140
Weight Kg 243 262 282 308 350
Required hydraulic lines n. 2 (1 leva d.e.)
Rotation cylinders n. 1 1 1 2 2
