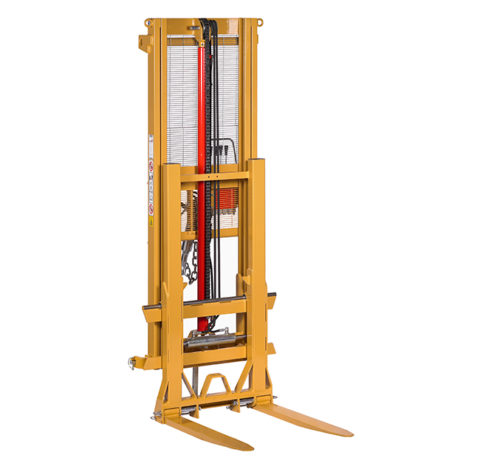

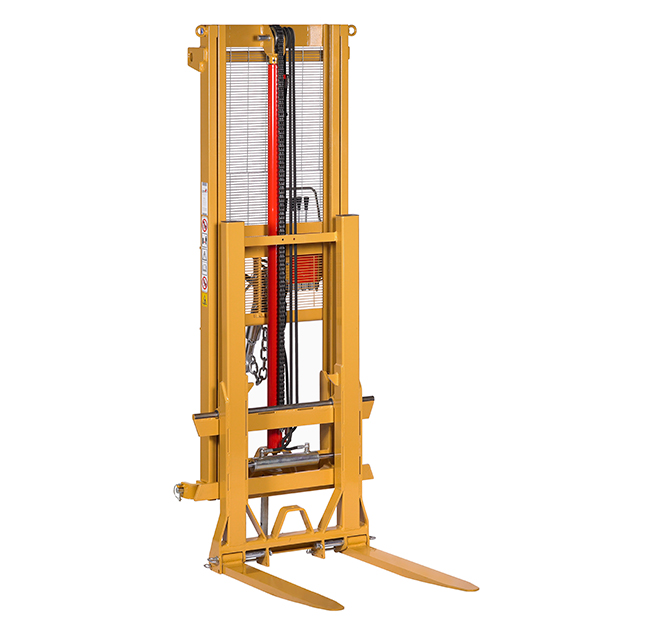

Hydraulic forklift CM 16DC

Hydraulic forklift suitable to medium power tractors

Load capacity 1600 kg
Lifting height from 1600 to 4000 mm
Light and professional

Application fields

Orchards, vineyard, horticulture, plant nursery

Categories: Hydraulic Forklifts, Duplex

General Details
Technical Specifications
Video Presentation
Download Sheet
Request Information

CM 16DC hydraulic forklift is complete of

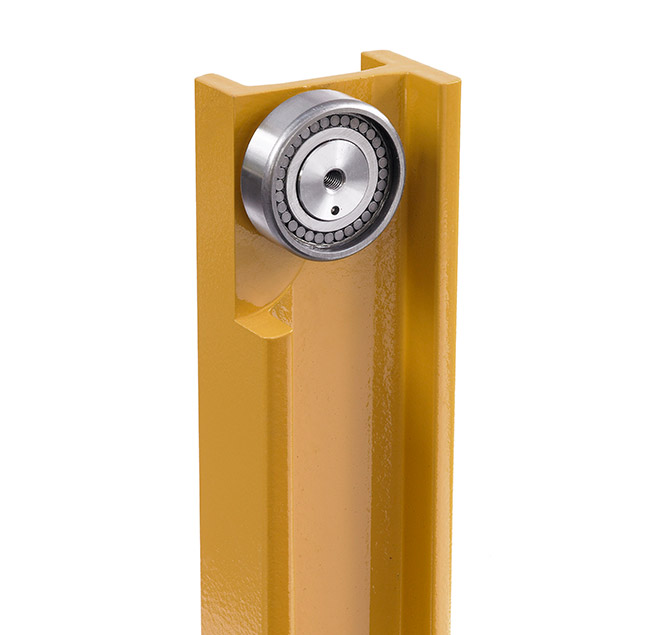

Cylindrical roller bearings
“Fleyer” lifting chain

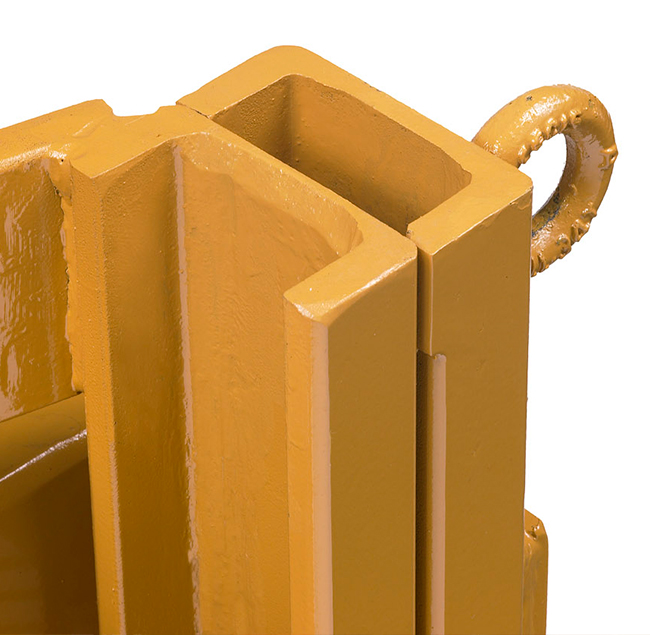

U” shaped hot rolled steel profiles
Double effect lifting cylinder
Cat.2 three point linkage

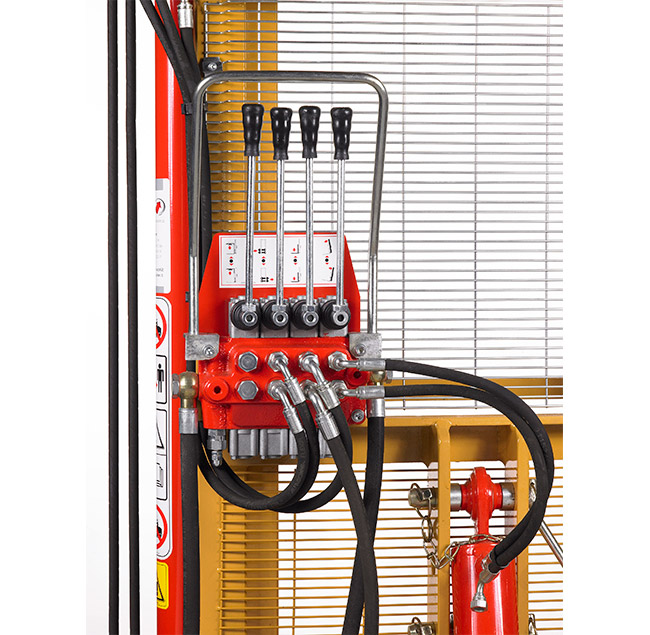

Distributor with 4 levers

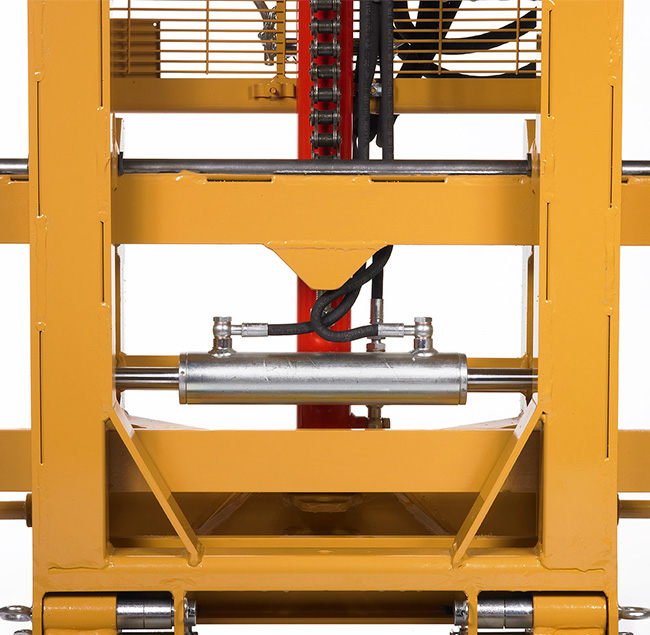

Side shift sliding on bushes

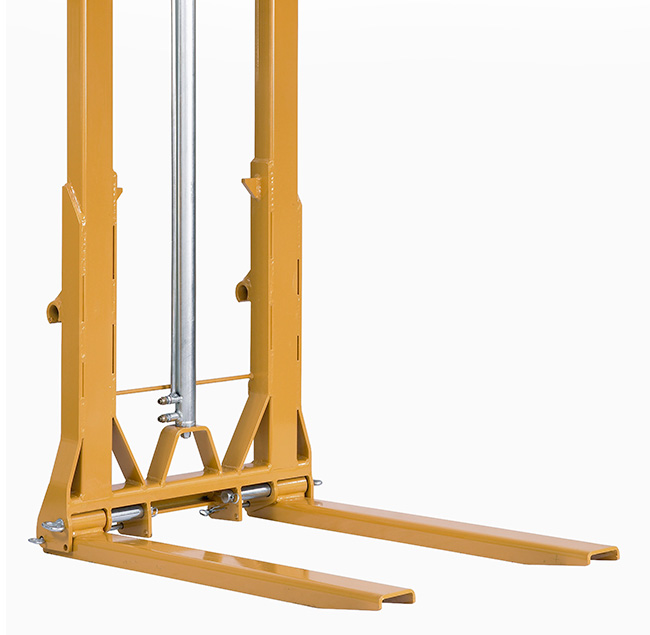

Adjustable and pliable forks
Tilting cylinder with adjustable junction
Connecting hoses to the tractor

Optional Accessories

Other accessories

Other accessories

Duplex
Models	C mm	H mm	P Kg	B mm	A mm	L mm	E mm	D mm	Q Kg
16 DC 1600	1660	1580	328	1100	1950	700	490÷720	500	1600
16 DC 2000	2000	1780	344	1350	2450	700	490÷720	500	1600
16 DC 2500	2500	2050	370	1350	2450	700	490÷720	500	1600
16 DC 3000	3000	2300	384	1350	2450	700	490÷720	500	1600
16 DC 3200	3200	2400	392	1350	2450	700	490÷720	500	1600
16 DC 3600	3600	2600	410	1350	2450	700	490÷720	500	1600
16 DC 4000	4000	2800	430	1350	2450	700	490÷720	500	1600

C	Lifting height
H	Overall dimensions
P	Weight
B	Minimum opening
A	Maximum opening
L	Forklift width
E	Forks width
D	Load centre
Q	Load capacity
