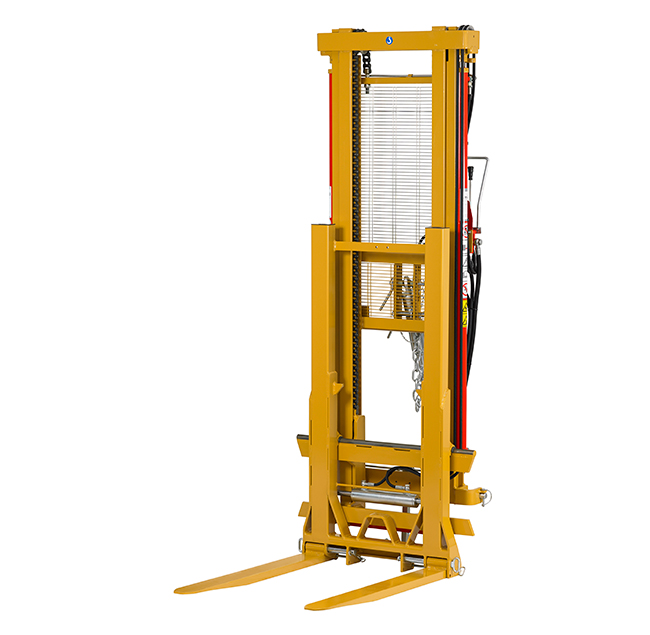

Hydraulic forklift CM 16DBCH
Hydraulic forklift suitable to medium power tractors
- Load capacity 1600 kg
- Lifting height from 2200 to 4000 mm

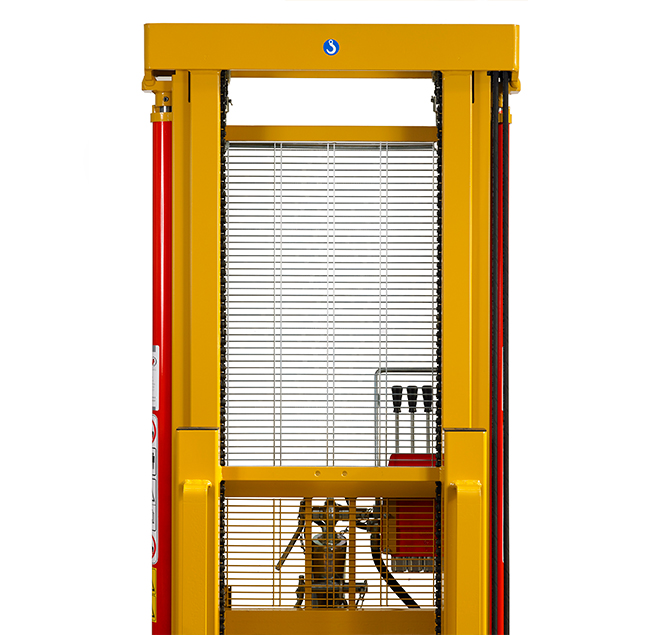

- Sturdy and balanced, with great visibility for the operator
Application fields
Orchards, vineyard, horticultureCM 16DBCH hydraulic forklift is complete of

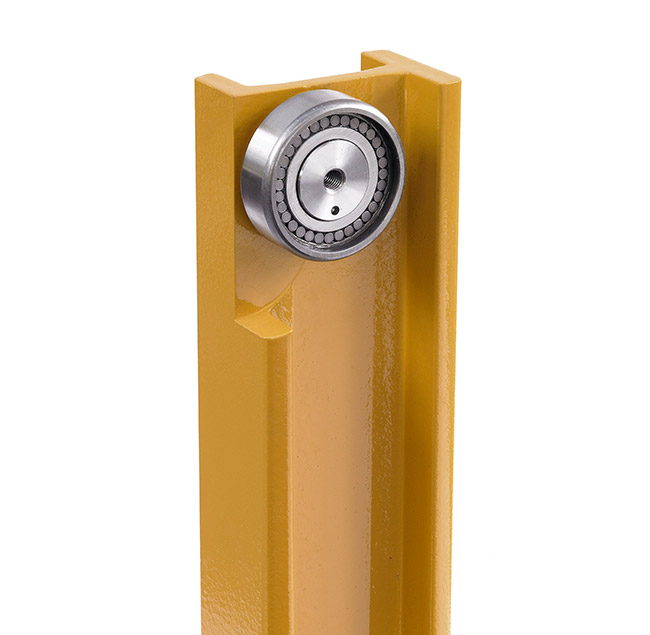

- Cylindrical roller bearings

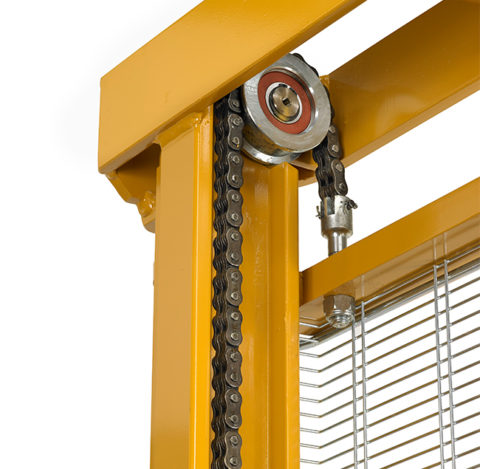

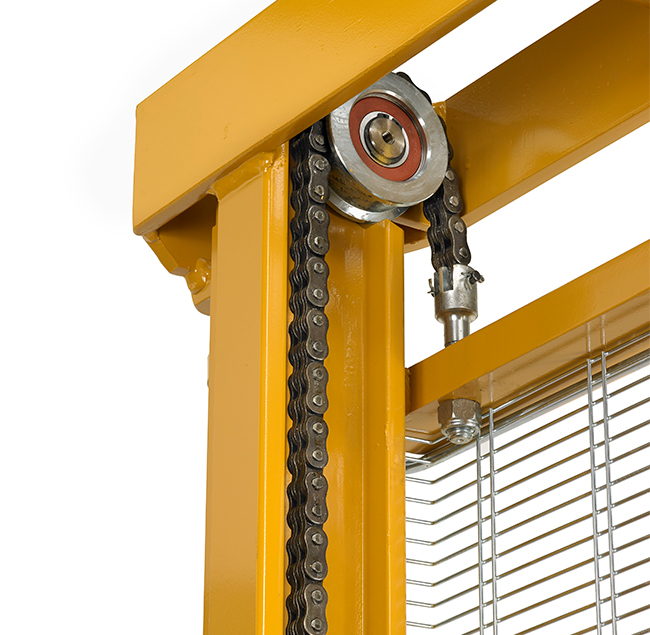

- Two standard lifting chains

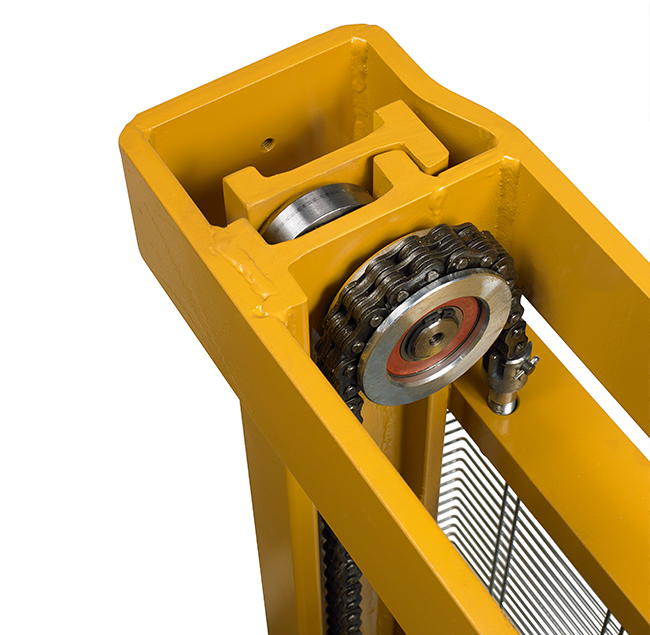

- “H” shaped hot rolled steel profiles
- Two lateral double effect lifting cylinders
- Cat.2 three point linkage

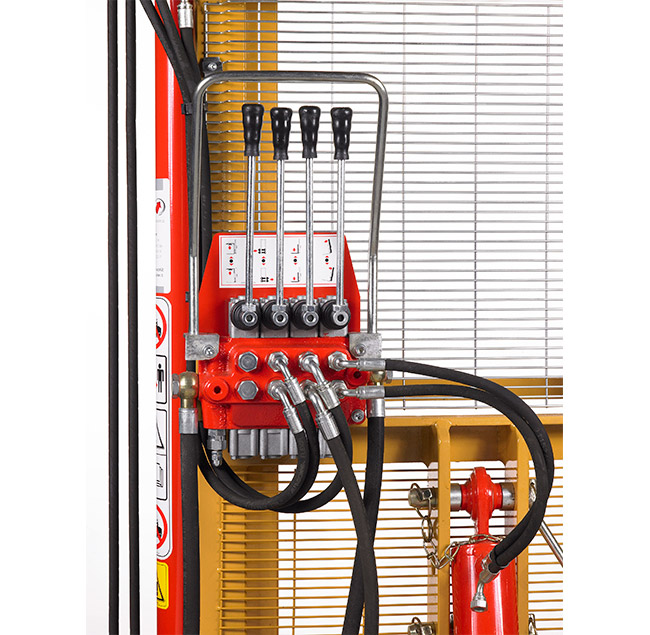

- Distributor with 4 levers

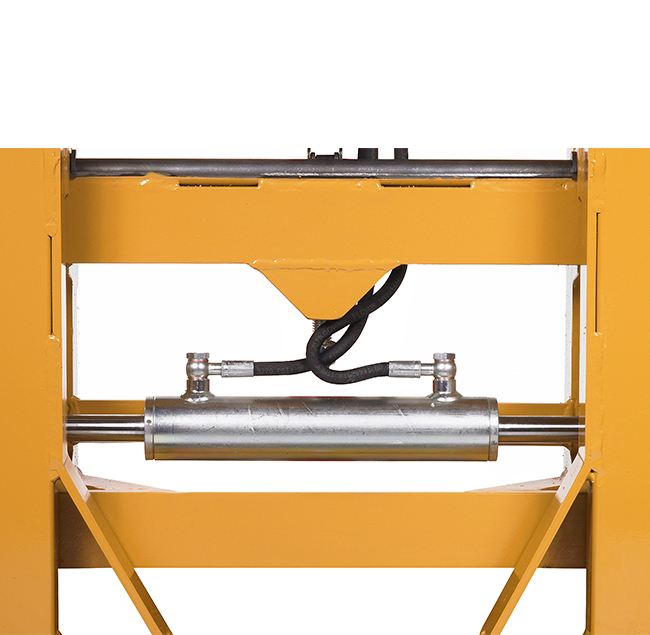

- Side shift sliding on bushes

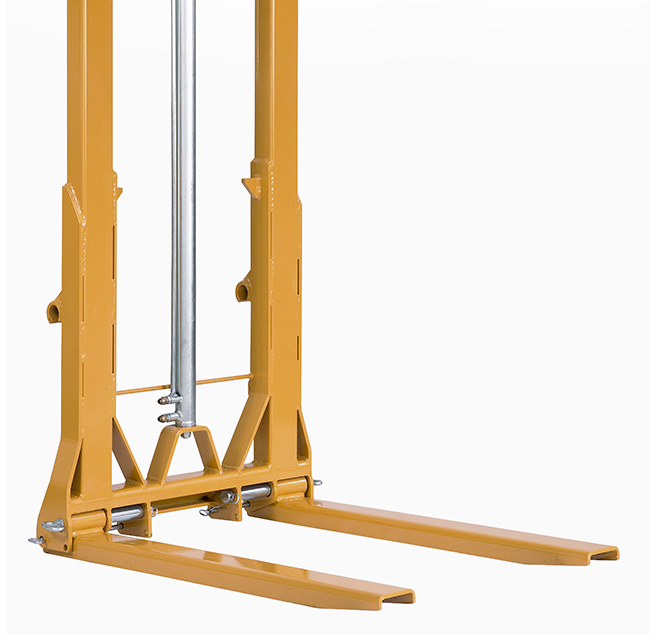

- Adjustable and pliable forks
- Tilting cylinder with adjustable junction
- Connecting hoses to the tractor
Optional Accessories
| Duplex | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Models | C mm |
H mm |
P Kg |
B mm |
A mm |
L mm |
E mm |
D mm |
Q Kg |
|
| 16 DBCH 2200 | 2200 | 1800 | 400 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| 16 DBCH 2800 | 2800 | 2100 | 440 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| 16 DBCH 3200 | 3200 | 2300 | 470 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| 16 DBCH 3600 | 3600 | 2500 | 500 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| 16 DBCH 4000 | 4000 | 2700 | 530 | 1350 | 2450 | 700 | 490÷720 | 500 | 1600 | |
| C | Lifting height |
| H | Overall dimensions |
| P | Weight |
| B | Minimum opening |
| A | Maximum opening |
| L | Forklift width |
| E | Forks width |
| D | Load centre |
| Q | Load capacity |
