• Hydraulic forklift CM16THAD
  • Hot rolled steel profiles
  • Straight roller radial bearings
  • Adjustable and pliable forks
  • Side shift
  • Distributor with 4 levers

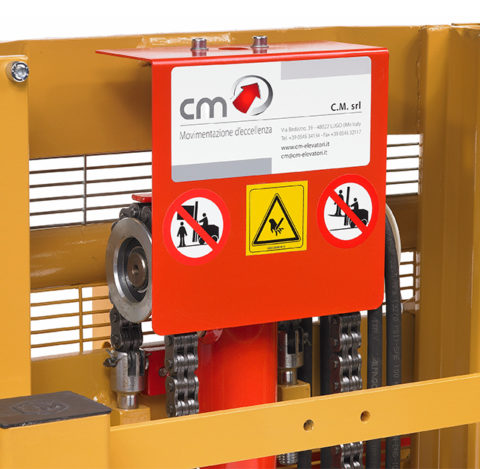

  • Fleyer type lifting chain
  • Free lifting

Hydraulic forklift CM 16THAD

Hydraulic forklift suitable to medium power tractors

  • Load capacity 1600 kg
  • Lifting height from 2500 to 3600 mm
  • Minimum overall dimensions with free lifting

Application fields

Orchards, vineyard, horticulture, greenhouse

CM 16THAD hydraulic forklift is complete of

  • Cylindrical roller bearings
  • Four “Fleyer” lifting chains
  • “U” and “H” shaped hot rolled steel profiles
  • Double effect lifting cylinder
  • Cat.2 three point linkage
  • Free lifting 200 mm
  • Distributor with 4 levers
  • Side shift sliding on bushes
  • Adjustable and pliable forks
  • Tilting cylinder with adjustable junction
  • Connecting hoses to the tractor

Optional Accessories

Triplex
Models C
mm
H
mm
P
Kg
B
mm
A
mm
L
mm
E
mm
D
mm
Q
Kg
16 THAD 2500 2500 1480 390 1100 1950 700 490÷720 500 1600
16 THAD 2800 2800 1580 425 1100 1950 700 490÷720 500 1600
16 THAD 3000 3000 1650 445 1100 1950 700 490÷720 500 1600
16 THAD 3200 3200 1730 465 1350 2450 700 490÷720 500 1600
16 THAD 3600 3600 1850 510 1350 2450 700 490÷720 500 1600


C  Lifting height
H  Overall dimensions
P  Weight
B  Minimum opening
A  Maximum opening
L  Forklift width
E  Forks width
D  Load centre
Q  Load capacity
