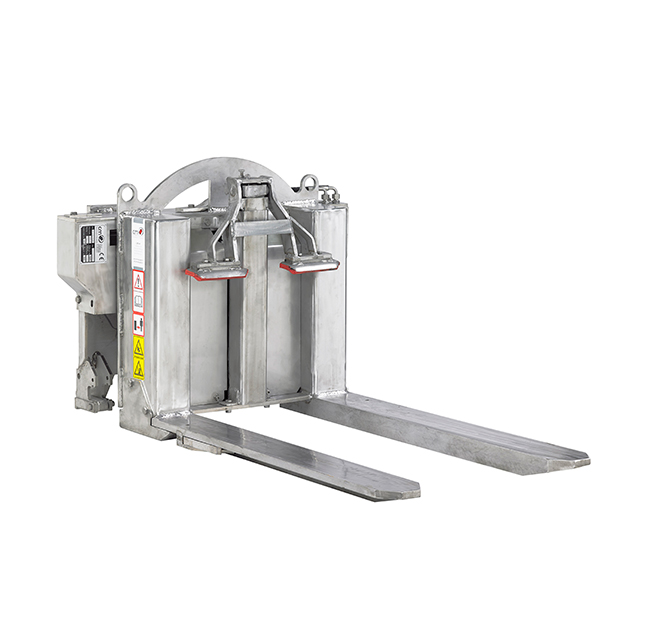

Hydraulic tipper CM 165 FLAP INOX
Hydraulic tipper for bins and containers applicable to all forklift trucks
- Overturning capacity 750 kg
- Load capacity 1500 kg
Innovative patented locking system
Made of stainless steel, easy to sterilize and highly resistant to corrosion: it is suggested for the food, fish and slaughtering sectors.Hydraulic tipper CM 165 FLAP INOX complete with
- Sequence valve to block and overturn with a single control
- Quick hooking/unhooking
- Connection hoses
Optional Accessories
| Model | 165 FLAP INOX | ||
|---|---|---|---|
| A | Length | mm | 1450 |
| B | Width | mm | 930 |
| C | Height | mm | 1050÷1465 |
| D | External fork width | mm | 670 |
| E | Height of containers | mm | 420÷1100 |
| H | Barycentre without load | mm | 240 |
| G | Barycentre of the load | mm | 500 |
| I | Thickness | mm | 335 |
| α | Overturning angle | ° | 165 |
| Q | Capacity | kg | 1500 |
| – | Overturning capacity | kg | 750 |
| – | Max. operating pressure | bar | 160 |
| – | Weight | kg | 320 |
| – | Required hydraulic functions | n. | 1 |
| – | Fixed forks | 130×60 L=1080 | |
